In the field of dredging engineering, choosing the right pipeline system is crucial to the efficiency and service life of the project. CDSR provides two professional dredging hoses - segment steel cone hose and pre-shaped elbow hose, which are designed with special solutions for different construction conditions to meet the needs of various complex working conditions.
High wear-resistant dredging tool

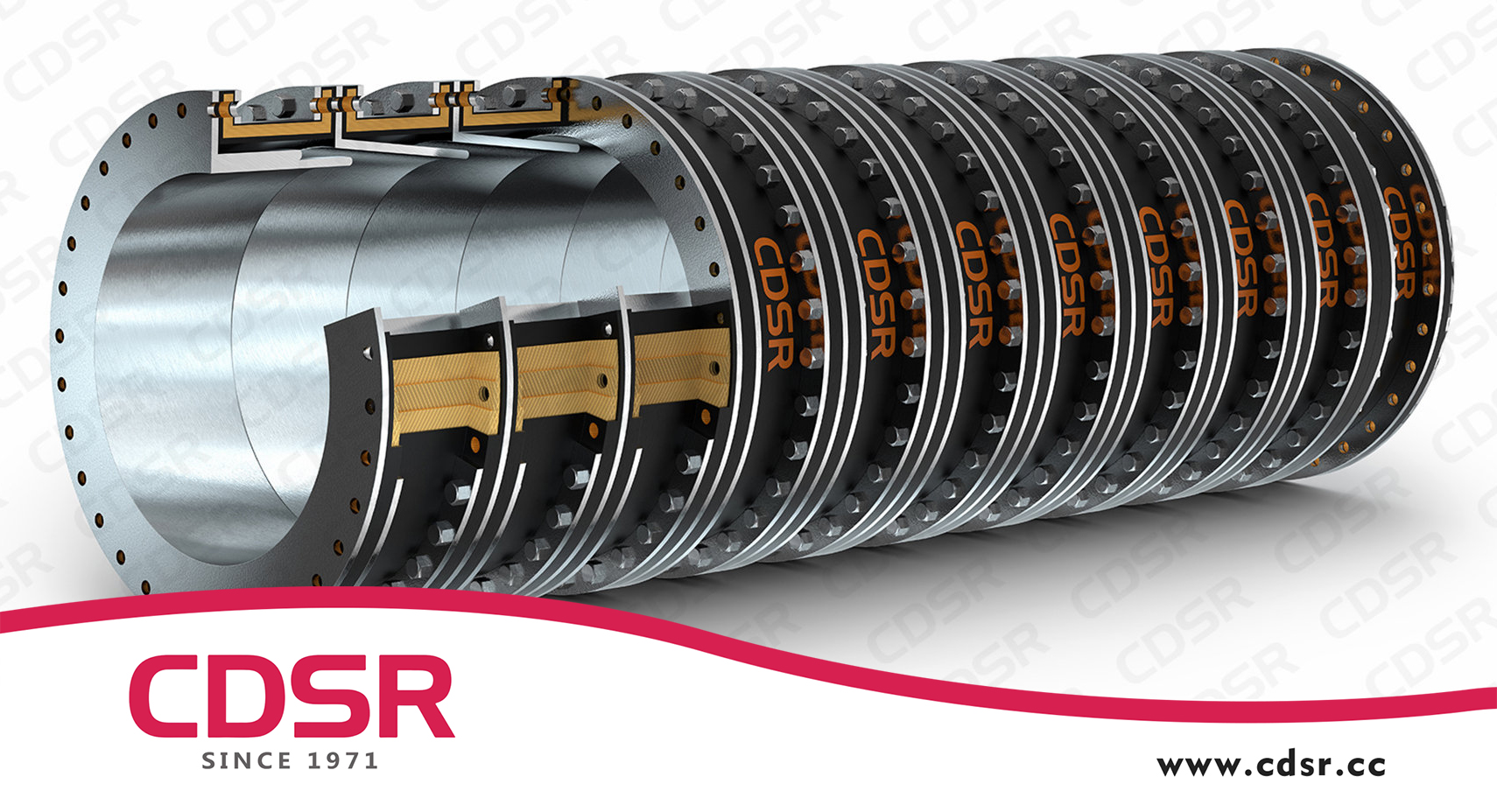

The segment steel cone hose is another form of suction hose and is a key component for the bridge connection of cutter suction dredger. It is designed for conveying highly abrasive media and performs well in harsh environments such as coral reefs, gravel, coarse sand and weathered rocks.
The core advantage of the segment steel cone hose lies in its super wear-resistant alloy steel working surface. This material ensures the durability of the pipeline when conveying highly abrasive media. Its directional combination and docking design not only improves installation efficiency, but also enhances the overall stability of the system.
In actual application, "Tian Kun Hao" is equipped with a special segment steel cone hose. The segment steel cone hose has a strong conveying capacity and can efficiently handle various media with a specific gravity between 1.0 g/cm³ to 2.3 g/cm³, including seawater, fresh water, and a mixture of silt, clay and sand. The segment steel cone hose has a wide range of environmental adaptability and can work stably in the temperature range of -20℃ to +50℃.
Flexible Direction Change Solution

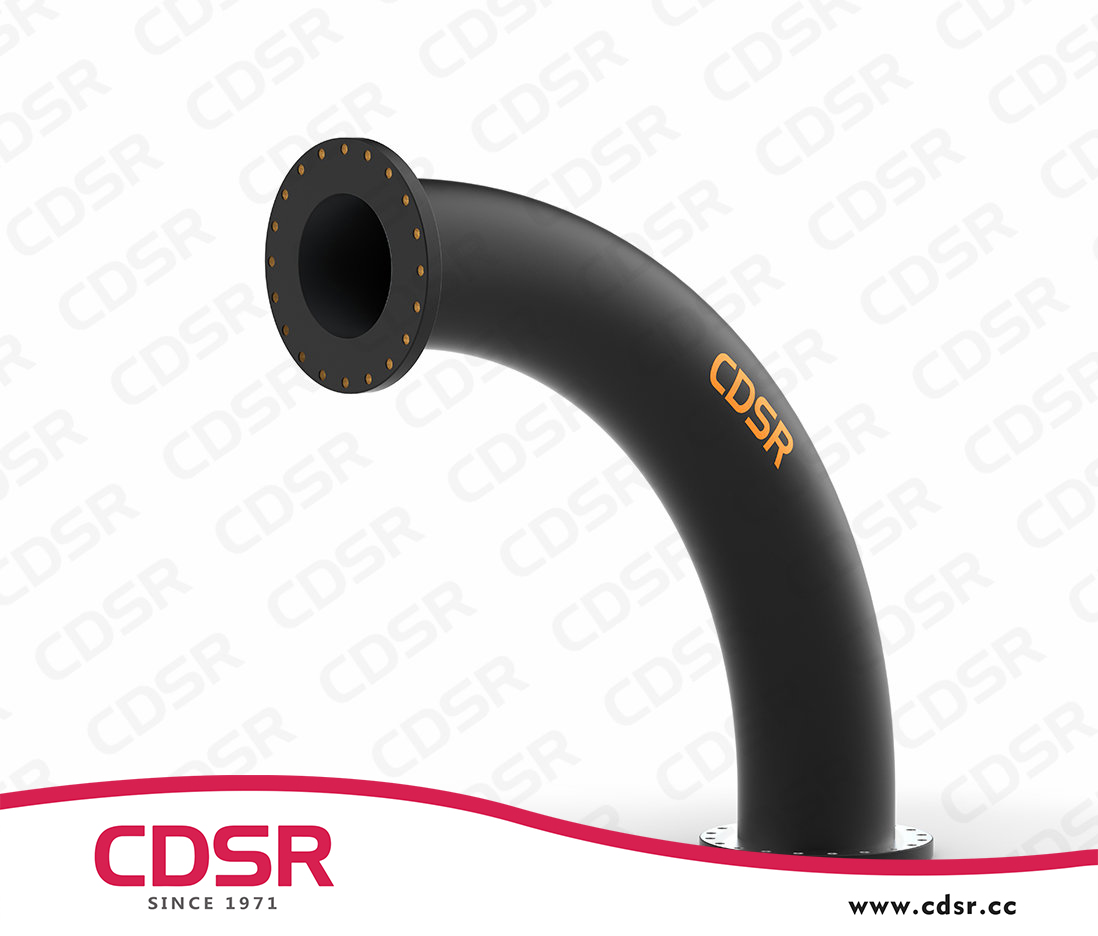

Pre-shaped elbow hose is another professional dredging product provided by CDSR. It is mainly installed in special parts of the equipment to change the direction of pipeline transportation. Different from ordinary pipes, pre-shaped elbow hoses provide excellent shock absorption effects due to their special materials and structures, and they play an important role in protecting the equipment as a whole.
This product provides a variety of options, including elbow hose with steel nipple, reducing elbow hose with steel nipple and elbow hose with sandwich flange to meet different connection requirements. The Pre-shaped elbow hose is specially designed for conveying media with a specific gravity of 1.0 g/cm³ to 2.3 g/cm³, and is suitable for seawater, fresh water, and mixtures of silt, clay and fine sand.
It should be emphasized that due to the continuous excessive wear caused by the bending angle of the pipe body, Pre-shaped elbow hoses are not suitable for long-term transportation of medium-coarse sand, gravel and other large-particle media with high abrasiveness. For such high-wear working conditions, it is recommended to use specially designed armored elbow hoses.
Engineering selection suggestions
1.For highly abrasive media (such as coral reefs, gravel, coarse sand, etc.) and occasions requiring high stability, segment steel cone hoses should be a good choice
2.When the conveying direction needs to be changed and shock absorption protection is required, pre-shaped elbow hose is an ideal choice
3.Ambient temperature and working pressure are also important factors that cannot be ignored when selecting
Date: 07 Aug 2025
