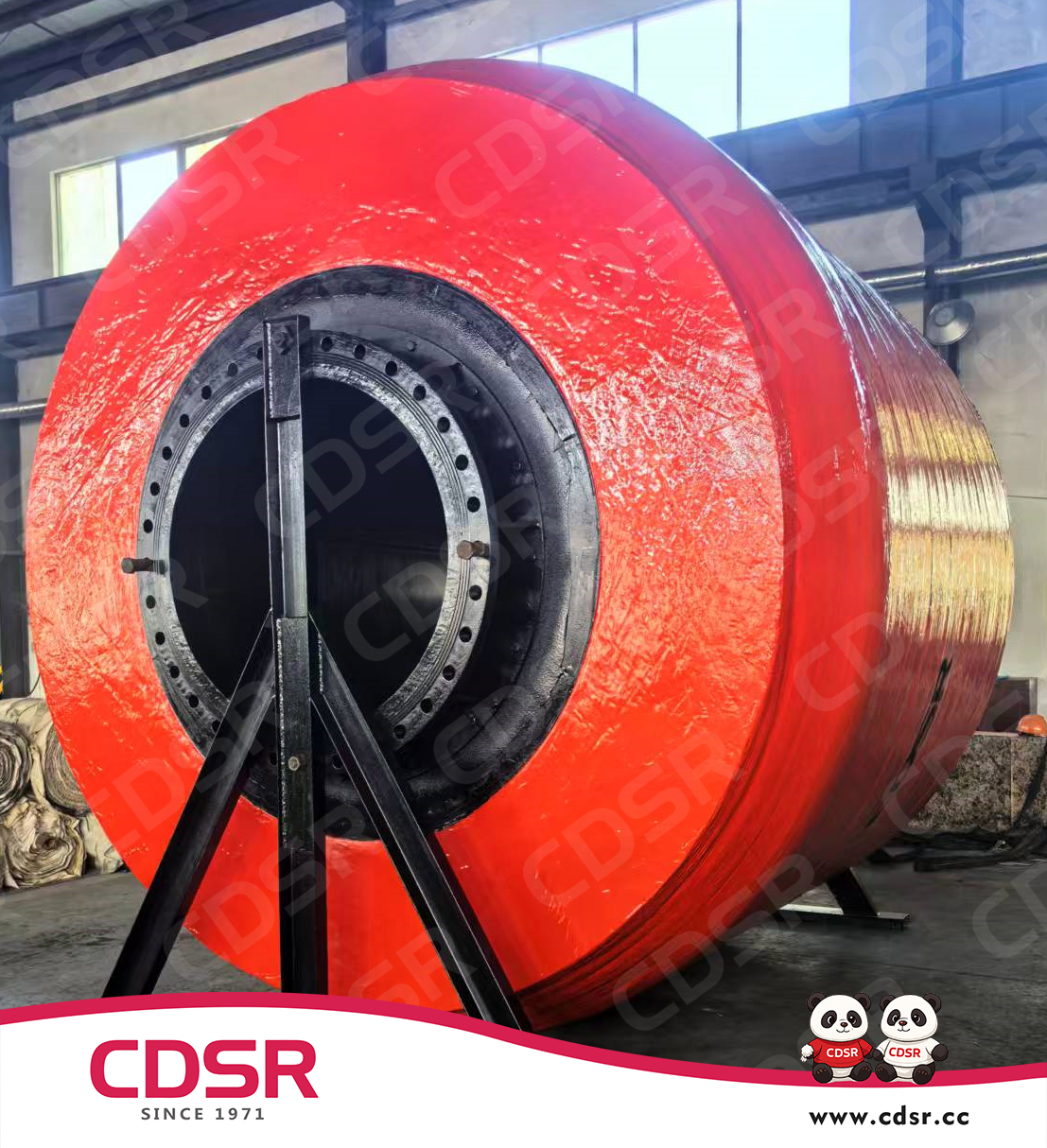

The "Tong Jun" is a super-large trailing suction hopper dredger with a capacity of 35,000 cubic meters, owned by CCCC Tianjin Dredging Co., Ltd., and is equipped with a CDSR PU Head Float with a diameter of 1200mm. This core component is not only a key part of the "Tong Jun" bow blowing system, but also embodies CDSR's more than 20 years of technical accumulation and independent innovation capabilities in this field.
Deep accumulation, continuous iteration
As one of the earliest companies in China to engage in the design and manufacture of head floats, CDSR has leveraged over 20 years of experience to successfully develop a series of bow-blown buoy products with independent intellectual property rights. Through technological iterations, the head float has formed a diversified product matrix, covering types such as fixed float, movable float, wear-resistant cylindrical float etc., which can accurately match the actual needs of different engineering scenarios and provide flexible and adaptable solutions for various dredging operations.
Three core functions, enhancing operational efficiency
The head float developed by CDSR has its core value concentrated in three key functions:
- Provides sufficient buoyancy to connect the hose and the male head, ensuring the stable operation of the bow blowing system during operation;
- It has high tensile strength and can withstand the complex stress environment in dredging operations, ensuring the safe operation of the equipment;
- Supports flexible replacement, and can be quickly adjusted according to the buoyancy requirements of different projects, improving operational adaptability and efficiency.
Enhanced by PU materials, comprehensive performance breakthrough
This head float uses Spray Polyurea Elastomer (PU) as the protective outer layer. The multiple superior properties of this material provide core support for the product's quality:
1.Catalyst-free, fast curing speed, and can be sprayed onto any curved, inclined, and vertical surface, adapting to the complex structural requirements of bow-blown floats;
2.Insensitive to moisture and temperature, application is not limited by the environment, and it can be sprayed and cured normally even in low temperatures of -28℃ or on ice surfaces;
3.Utilizes a two-component, 100% solids formula, free of any volatile organic compounds (VOCs), achieving environmentally friendly, pollution-free green construction, and is safe and harmless during use;
4.Supports thermal spraying or pouring processes, with a single application thickness ranging from hundreds of micrometers to several centimeters, completely solving the drawbacks of traditional products requiring multiple applications;
5.It has excellent physical and chemical properties, with extremely high tensile and impact strength, good flexibility, excellent wear resistance and aging resistance, and also has anti-slip and anti-corrosion effects;
6.It exhibits outstanding thermal stability, allowing for long-term use at 120℃ and withstanding short-term thermal shocks of 350℃, making it suitable for complex temperature scenarios in dredging operations.
Leveraging its independent intellectual property rights, long-term technological accumulation, and the application of high-quality materials, CDSR's latest PU head float not only meets the high-standard operational requirements of ultra-large dredgers like the "Tong Jun". But also, with its diversified product types and reliable performance, has become a core supporting product in the dredging engineering field, providing strong support for the localization and upgrading of China's dredging equipment.
Date: 22 Apr 2026
